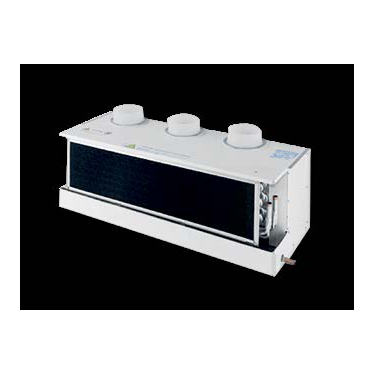

Frigomar fan-coil units deliver chilled-water cooling to individual cabins, saloons and technical spaces. The range (models 748 to 752) covers 18,000 to 30,000 BTU with 3- and 4-speed blowers and airflow up to 1,400 m³/h. These are self-contained (non-canalizable) units sized for direct in-space installation on a chilled-water inverter system.
Key features
- Five models: 748 / 749 / 750 / 751 / 752
- Capacities from 18,000 to 30,000 BTU
- 3- and 4-speed blowers, airflow up to 1,400 m³/h
- Single-phase 230 V supply
- Compact self-contained (non-canalizable) design
Fan-Coil Models & Specifications
| 748 (W) | 24,000 BTU · 850×275×330 mm · 18 kg · 3-speed · 940 m³/h |
|---|---|
| 749 (X) | 20,000 BTU · 640×275×410 mm · 18 kg · 4-speed · 940 m³/h |
| 750 (X1) | 30,000 BTU · 850×275×410 mm · 20 kg · 4-speed · 1,060 m³/h |
| 751 (Z2) | 18,000 BTU · 640×275×330 mm · 12 kg · 3-speed · 940 m³/h |
| 752 (W1) | 30,000 BTU · 850×275×410 mm · 23 kg · 4-speed · 1,400 m³/h |
| Power supply | 230 V / 1 ph |
| Type | Self-contained fan-coil (not canalizable) |
Applications
YachtsSuperyachtsCharter fleetsCommercial vessels
Compatible Equipment
Frigomar CU / NT inverter chillersChilled-water distribution loopFrigomar digital touch controller
Frequently Asked Questions
What is the capacity range?
The Frigomar fan-coil range covers 18,000 to 30,000 BTU across five models (748–752).
Are these ducted units?
No — these fan-coil units are self-contained (non-canalizable) and designed for direct installation in the space they condition.
How much airflow do they move?
Depending on model and speed setting, airflow ranges up to 1,400 m³/h (model 752).
