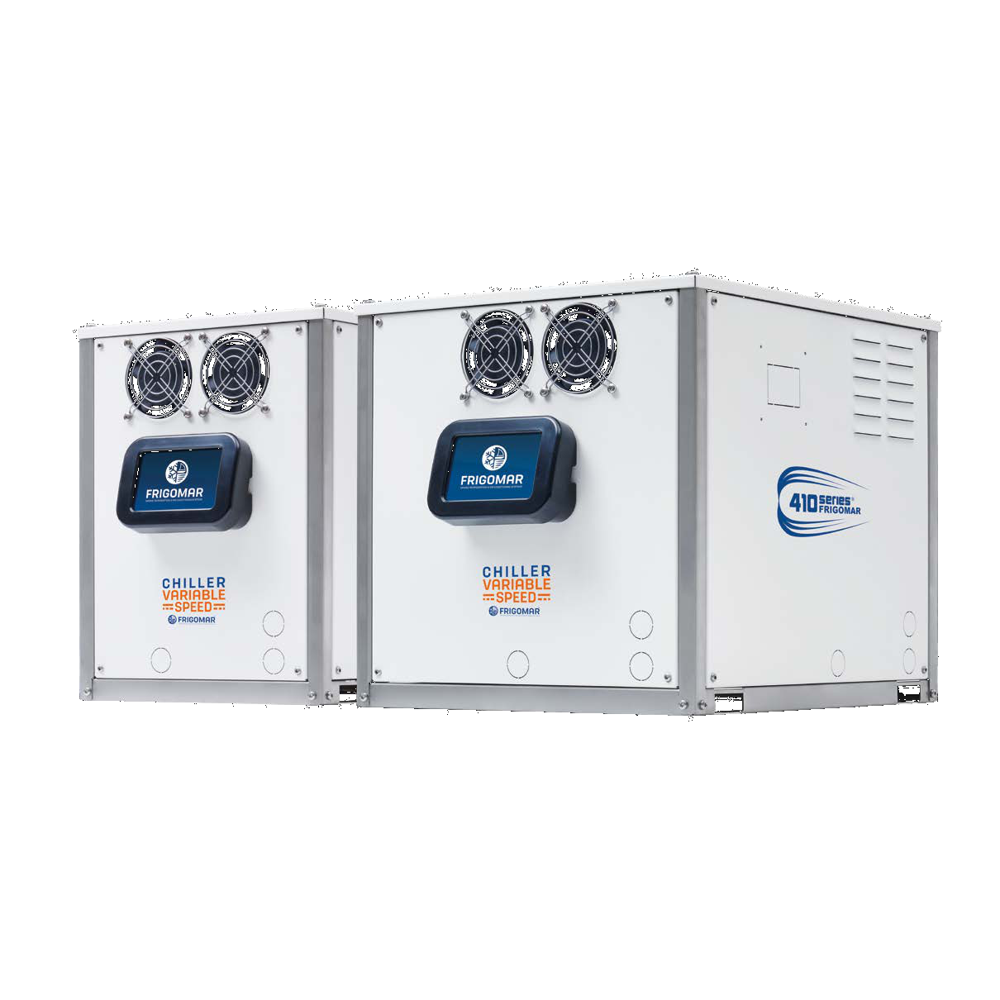

The Frigomar CU50VFD is a self-contained, seawater-cooled marine chiller built around a variable-speed BLDC inverter compressor. The compressor modulates continuously between 20 and 100 Hz to match the cooling load, giving stable comfort and reduced electrical draw compared with a fixed-speed unit. A dedicated ECO mode delivers 18,000 BTU/h at greatly reduced power for light-load conditions. A detachable touch-screen display can be mounted up to 50 m from the unit.
Key features
- Variable-speed BLDC inverter compressor — up to 98% motor efficiency, 20–100 Hz
- ECO mode: 18,000 BTU/h at ~0.85 kW input
- Single-phase 230 V supply — no three-phase required
- Detachable touch display, up to 50 m remote cable
- R410A refrigerant, marine-grade seawater-cooled condenser
Technical Specifications — CU50VFD
| Cooling capacity | 50,000 BTU/h (≈4 tons) |
|---|---|
| ECO mode capacity | 18,000 BTU/h |
| Power supply | 230 V / 1 ph / 50–60 Hz |
| Max power input | 2.2 kW |
| Max current | 10 A |
| ECO power input | 0.85 kW |
| Compressor | BLDC twin-rotary inverter, 20–100 Hz |
| Refrigerant | R410A — 0.75 kg |

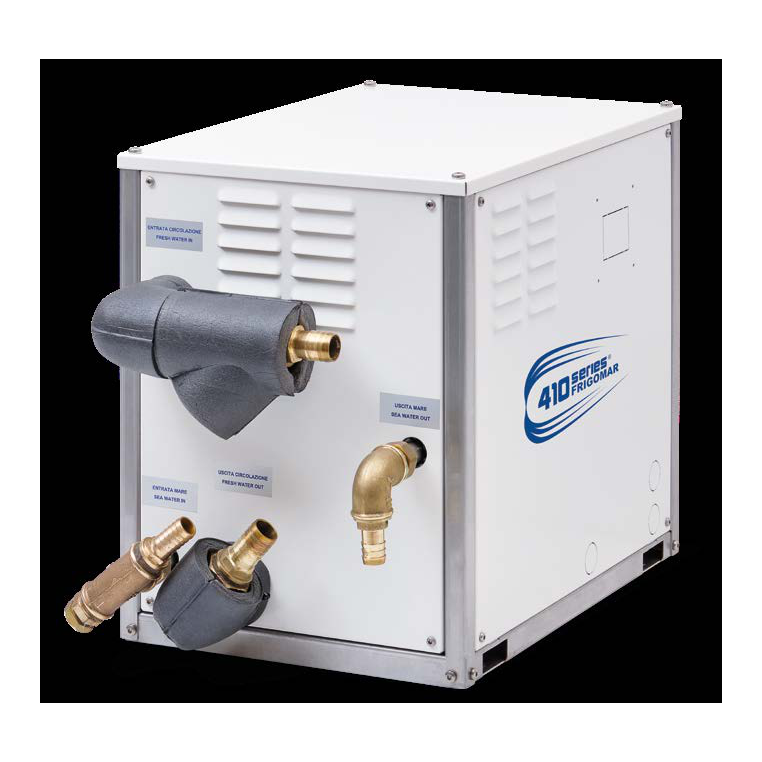

| Seawater flow | 1.8 m³/h @ 6.5 m head |
| Chilled / fresh water flow | 1.5 m³/h @ 2.8 m head |
| Dimensions (W×D×H) | 330 × 418 × 477 mm (+100 mm pipe) |
| Weight | 55 kg (121 lb) |
| Display | Detachable touch screen, up to 50 m cable |
Applications
Compatible Equipment
Frequently Asked Questions
How many tons is the CU50VFD?
The CU50VFD delivers 50,000 BTU/h, which is approximately 4 refrigeration tons of cooling capacity.
Does it need a three-phase supply?
No. The CU50VFD runs on a single-phase 230 V / 50–60 Hz supply, which makes it suitable for vessels without three-phase power.
What is ECO mode?
ECO mode reduces the compressor output to about 18,000 BTU/h at roughly 0.85 kW input for efficient cooling when full capacity is not needed.
