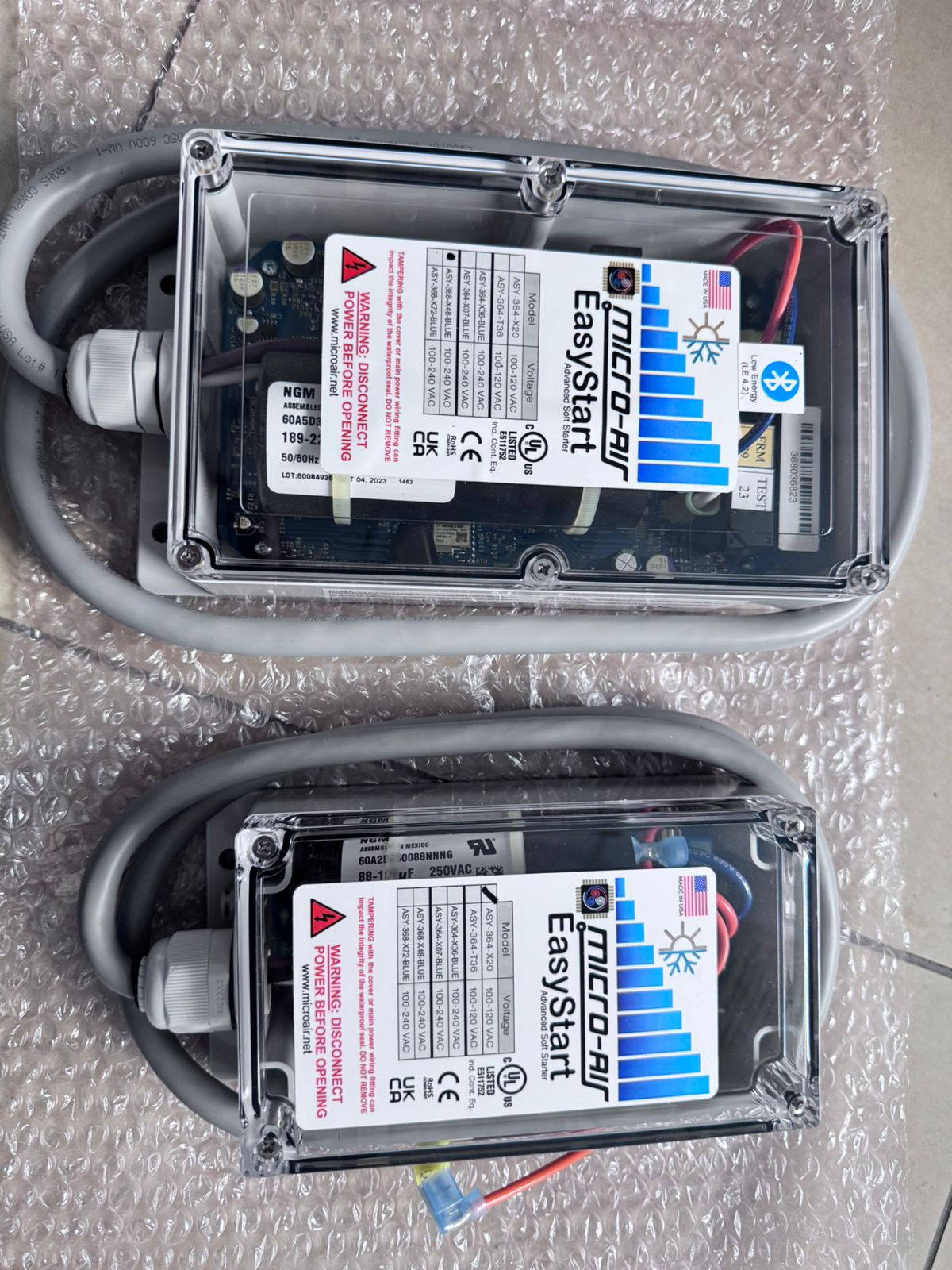

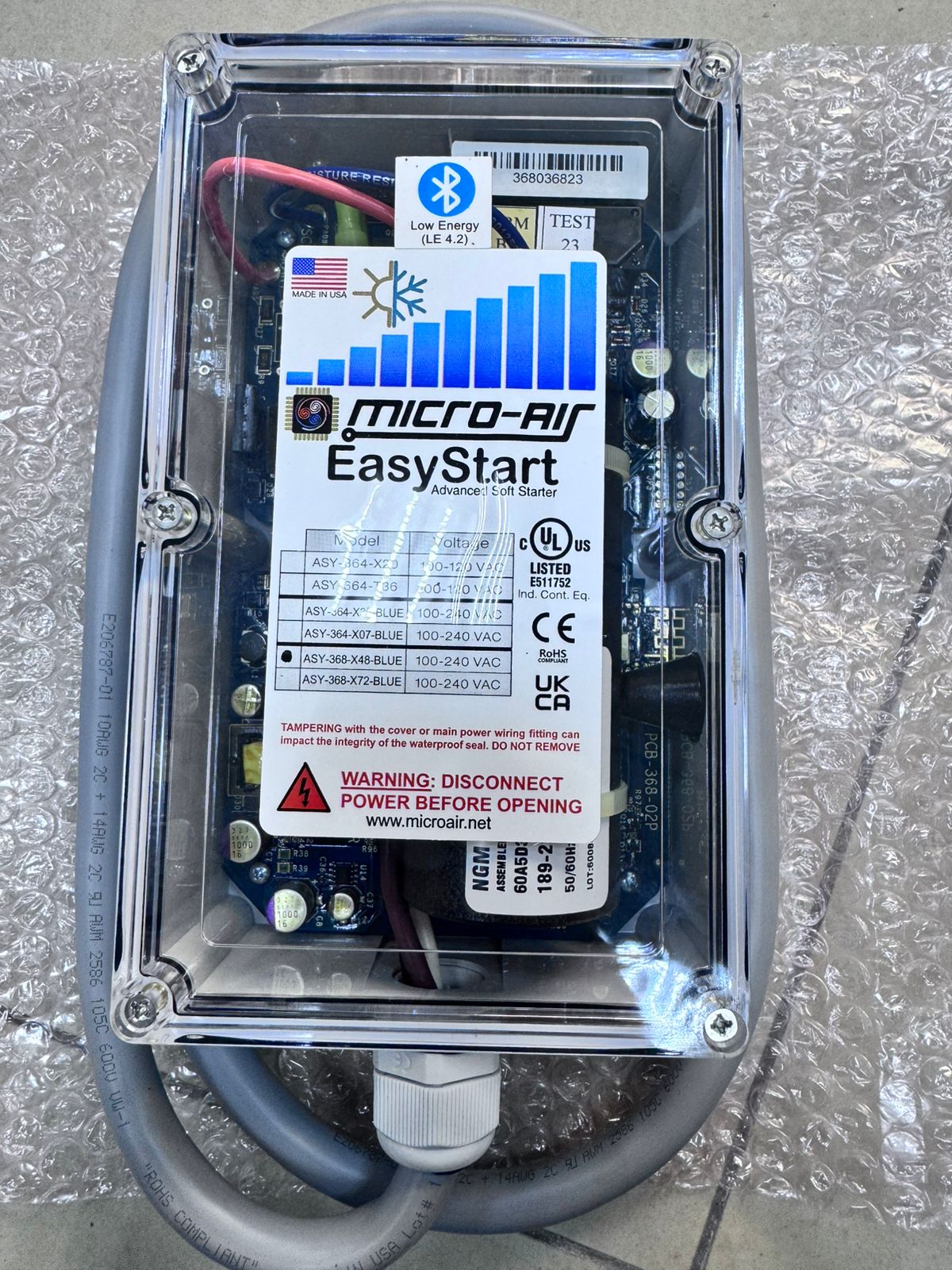

The Micro-Air EasyStart is a microprocessor-controlled single-phase soft starter for marine AC compressors. It reduces the compressor’s start-up inrush (locked-rotor) current by roughly 65–75%, allowing air conditioning to run on a generator, inverter or smaller supply without tripping breakers or dimming lights. Setup and diagnostics are done over Bluetooth using the free EasyStart app.
Technical overview
- Cuts compressor start-up current by ~65–75% of locked-rotor amps
- Lets marine AC run on generators, inverters and smaller power systems
- Bluetooth setup, monitoring and diagnostics (free app, no subscription)
- Built-in fault protection (stall, brownout, overcurrent, miswiring, short-cycle)
- 368 family: universal 115/230 VAC, weatherproof enclosure
Choosing the right model
The model suffix indicates the compressor capacity tier, not an amp value. As a guide: ASY-364 models suit smaller units (approx up to ~12–36K BTU depending on model/voltage) and ASY-368-X48 suits roughly 2–3.5 ton (~19–42K BTU) systems. Tell us your compressor’s LRA or your AC model and we’ll confirm the correct EasyStart.
Technical Specifications
| Brand | Micro-Air (Made in USA) |
|---|---|
| Type | Single-phase compressor soft starter |
| Start-current reduction | ~65–75% of locked-rotor current |
| Model families | ASY-364 (smaller), ASY-368 (universal 115/230 VAC) |
| Setup | Bluetooth app (iOS / Android) |
| Protection | Stall, brownout, overcurrent, miswiring, short-cycle |
| Example model | ASY-368-X48-BLUE (100–240 VAC, as marked) |
Applications
Compatible Equipment
OEM / Cross References
As marked / for identification only — confirm fitment before ordering.
Industries Served
Frequently Asked Questions
Will EasyStart let my marine AC run on a generator?
In most cases yes — by cutting the compressor’s start-up surge by around 65–75%, EasyStart lets many marine AC units start and run on a generator or inverter that could not handle the inrush before. Correct sizing to your compressor is essential; we can confirm the right model.
Does the model number equal the amp rating?
No. The suffix (e.g. X48, X72) is a capacity tier, not an amp value — X48 does not mean 48 amps. We size by your compressor’s locked-rotor current or AC tonnage.
Which EasyStart do I need?
Send us your AC unit model or the compressor nameplate (LRA/tonnage) and we’ll confirm whether an ASY-364 or ASY-368 model is correct.
