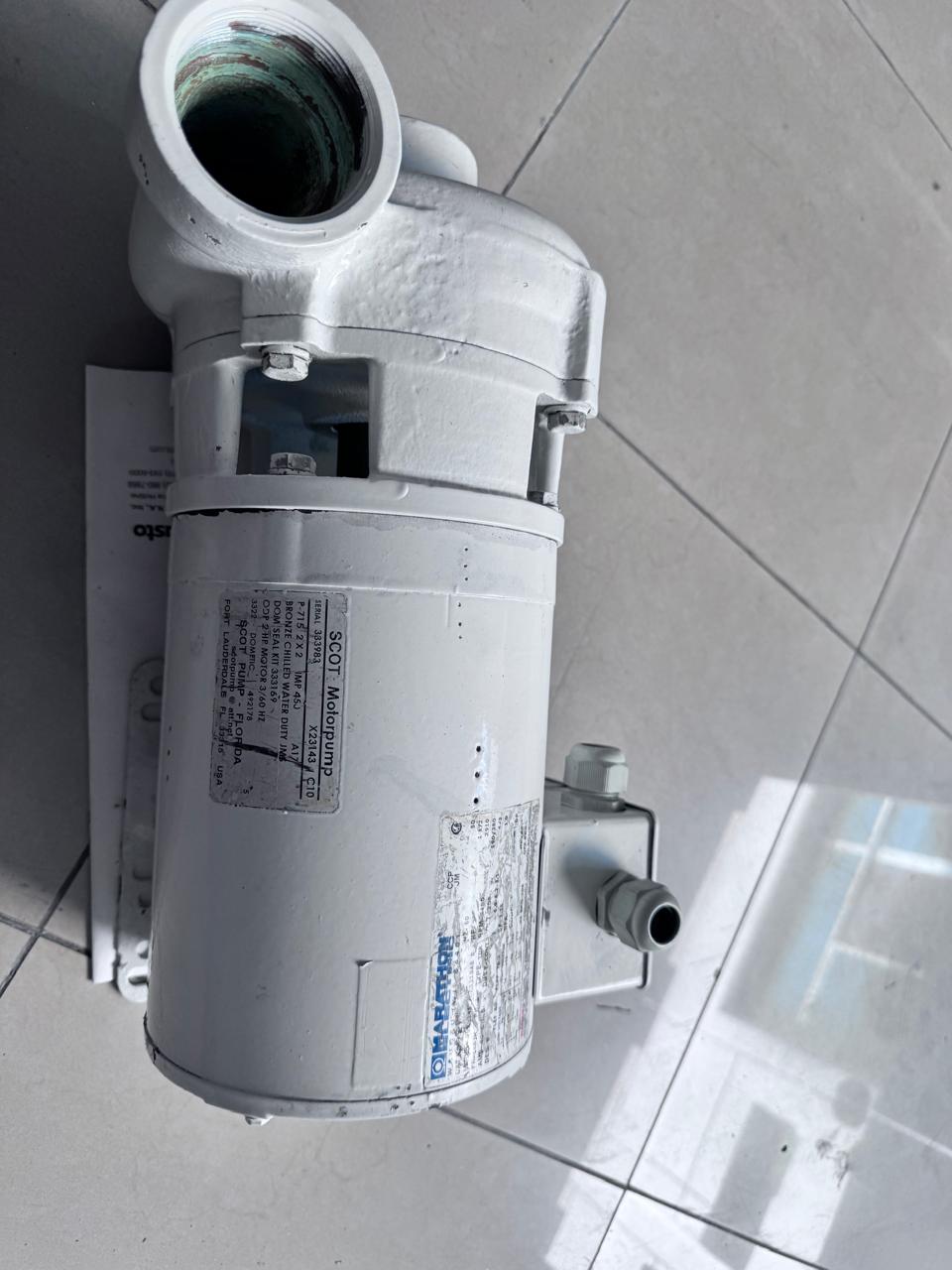

Scot Pump marine bronze MotorPumps are close-coupled seawater circulation pumps used on marine air conditioning and chiller systems — the raw-water pump that pushes seawater through the condenser. Bronze wet end and semi-open bronze impeller resist seawater corrosion; TEFC motors in single- or three-phase, 50/60 Hz.
Technical overview
- Bronze close-coupled seawater circulation pump
- A/C & refrigeration seawater condenser duty
- Semi-open bronze impeller, stainless shaft, mechanical seal
- Single- or three-phase, 50/60 Hz TEFC motor
- Seal & gasket kits available as service consumables
Technical Specifications
| Brand | Scot Pump (Florida, USA) |
|---|---|
| Type | Bronze close-coupled seawater MotorPump |

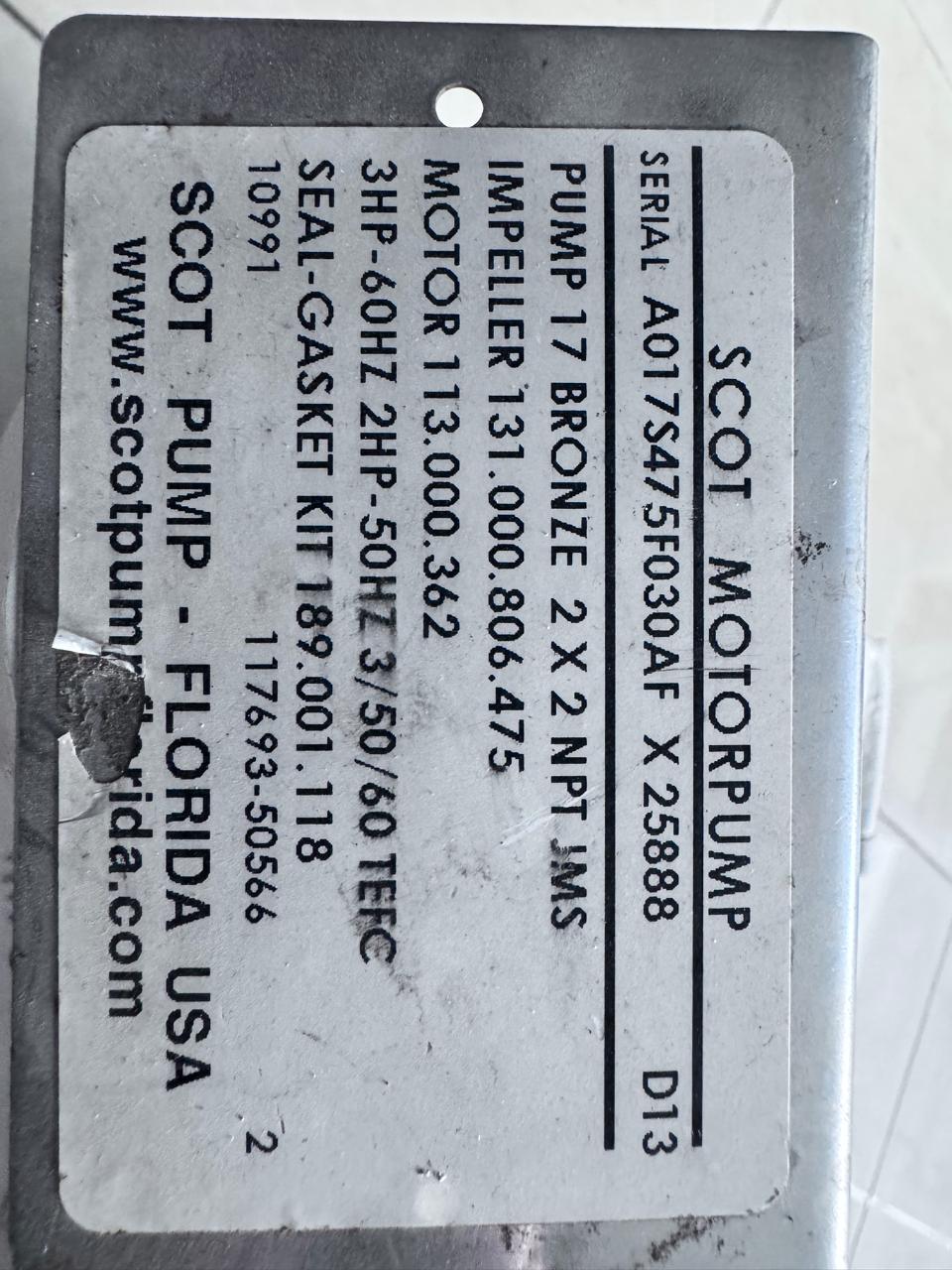

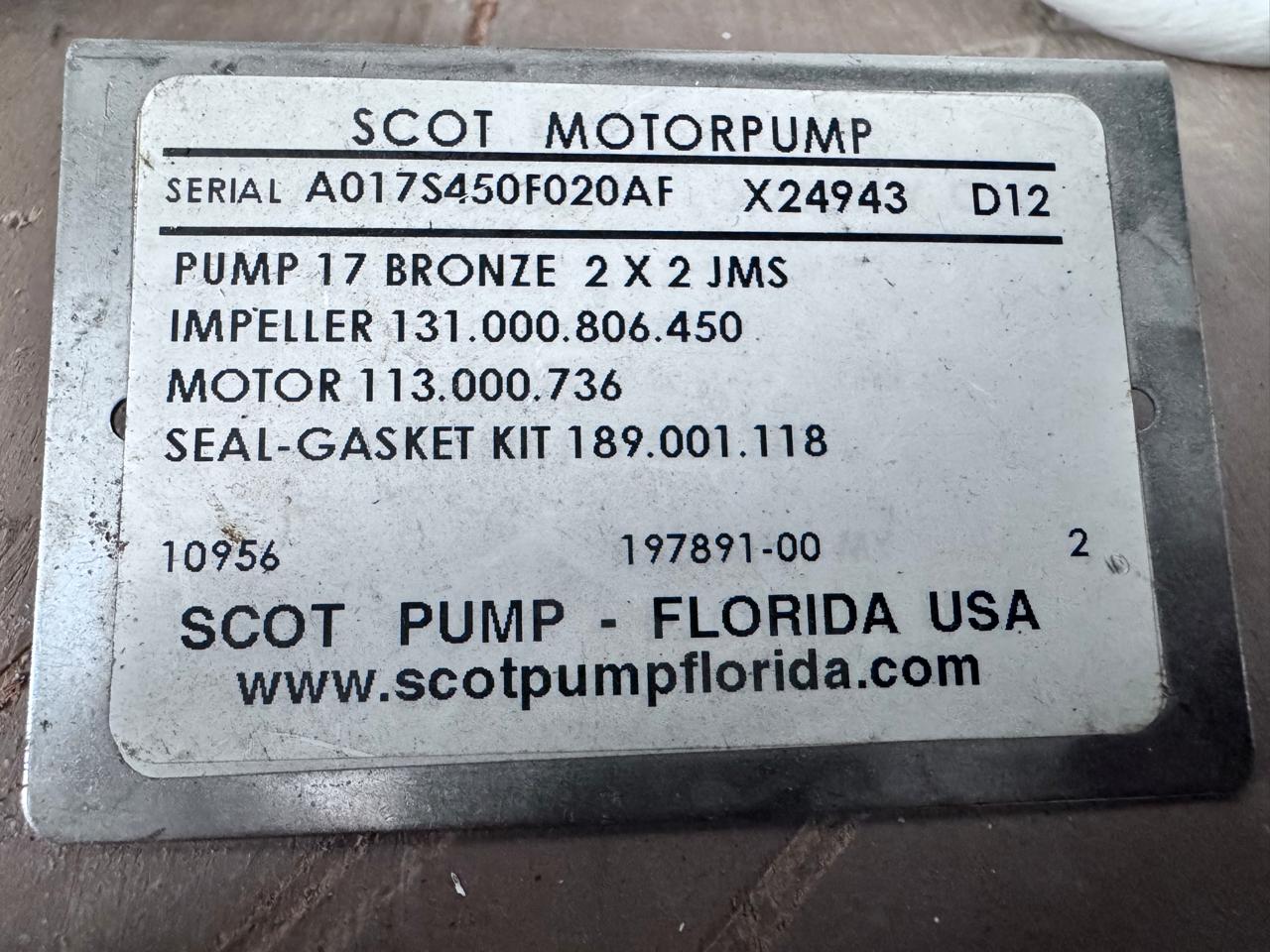

| Example | Model 17, 2 x 2 NPT (as marked) |

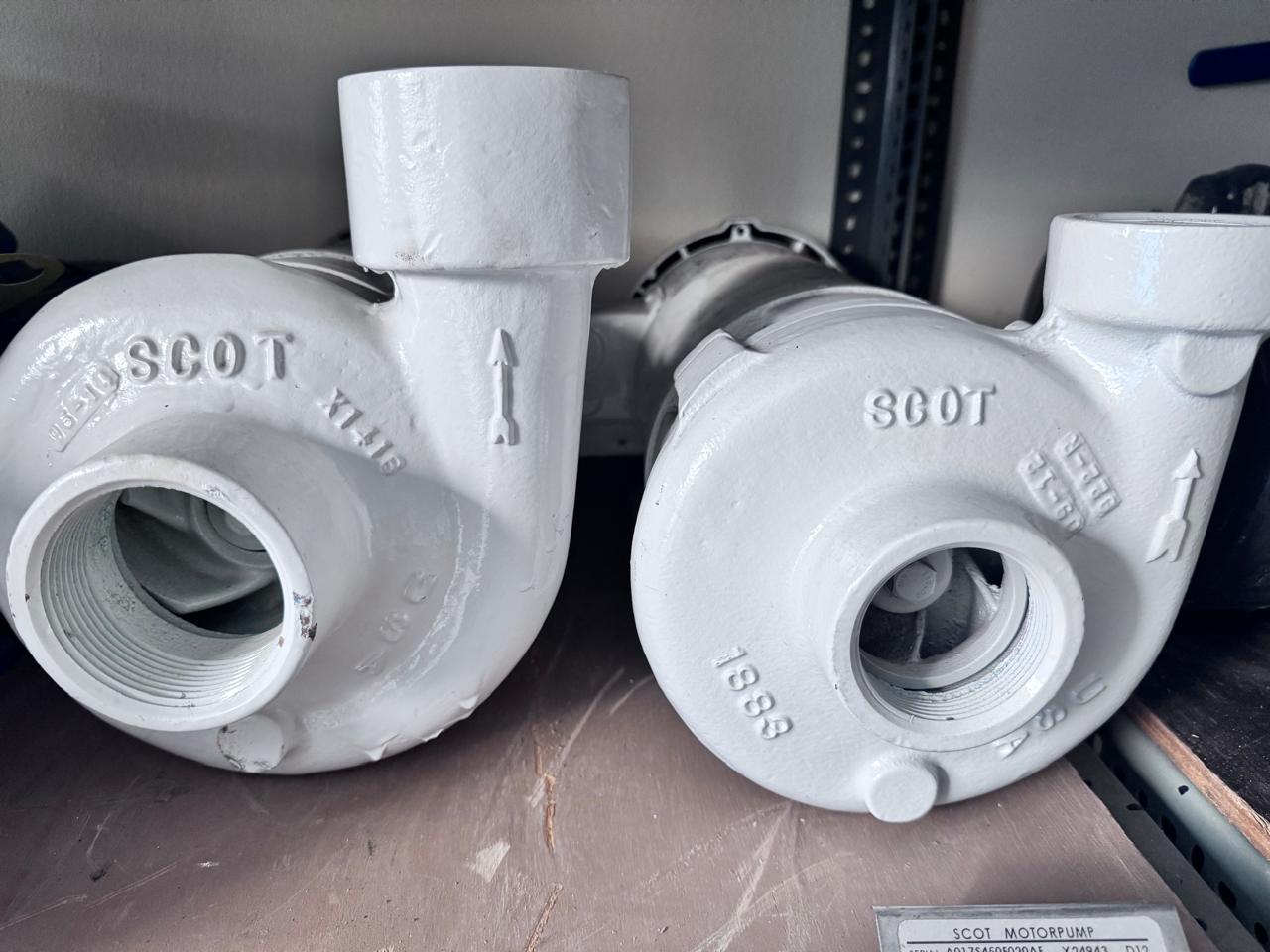

| Wet end | Bronze body & semi-open impeller |
| Motor | TEFC, 1- or 3-phase, 50/60 Hz |
| Duty | A/C & refrigeration seawater condenser |
Applications
Marine AC condenser coolingChilled-water plant circulationRefrigeration seawater duty
Compatible Equipment
Self-contained marine ACChilled-water AC plants
OEM / Cross References
Scot Model 172×2 NPT bronzeSeal/gasket kit (per model)
As marked / for identification only — confirm fitment before ordering.
Industries Served
Yachts & SuperyachtsCommercial VesselsCharter FleetsShipyards & Refit
Frequently Asked Questions
How do I identify the right Scot pump?
Send us the pump nameplate (model, HP, voltage, port size) or your AC system model. We match the correct pump or supply a seal/gasket kit if the pump can be rebuilt.
Can you supply just the seal kit?
Yes — mechanical seal and gasket kits are the standard consumable on seawater pumps and are often all that a leaking pump needs.
